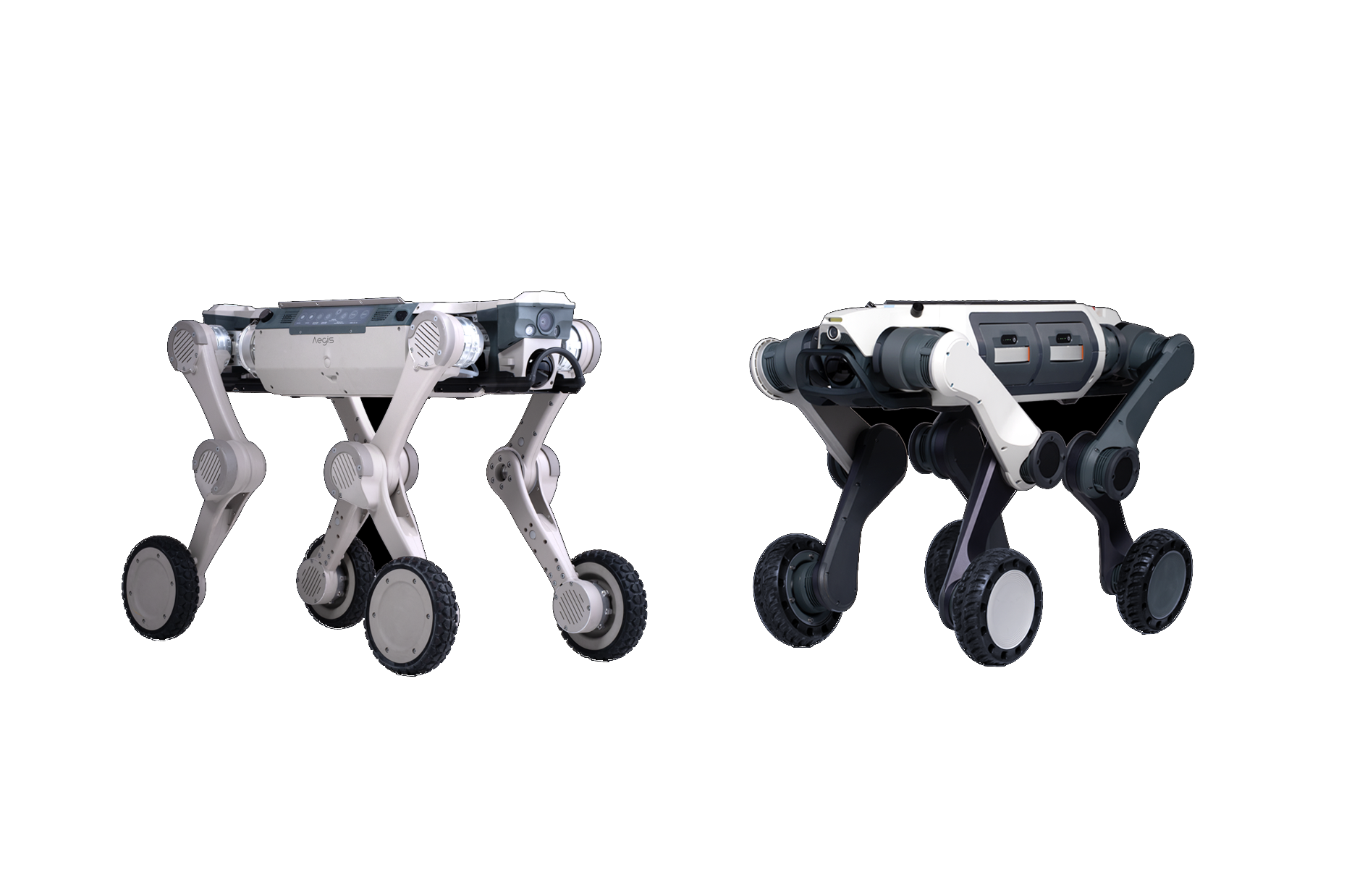

FX Aegis Mega
Built for complex terrain. Ready for every mission.
Highlights
-
Dual 96-line 3D LiDAR
360° coverage -
45° gradient · 25 cm stairs

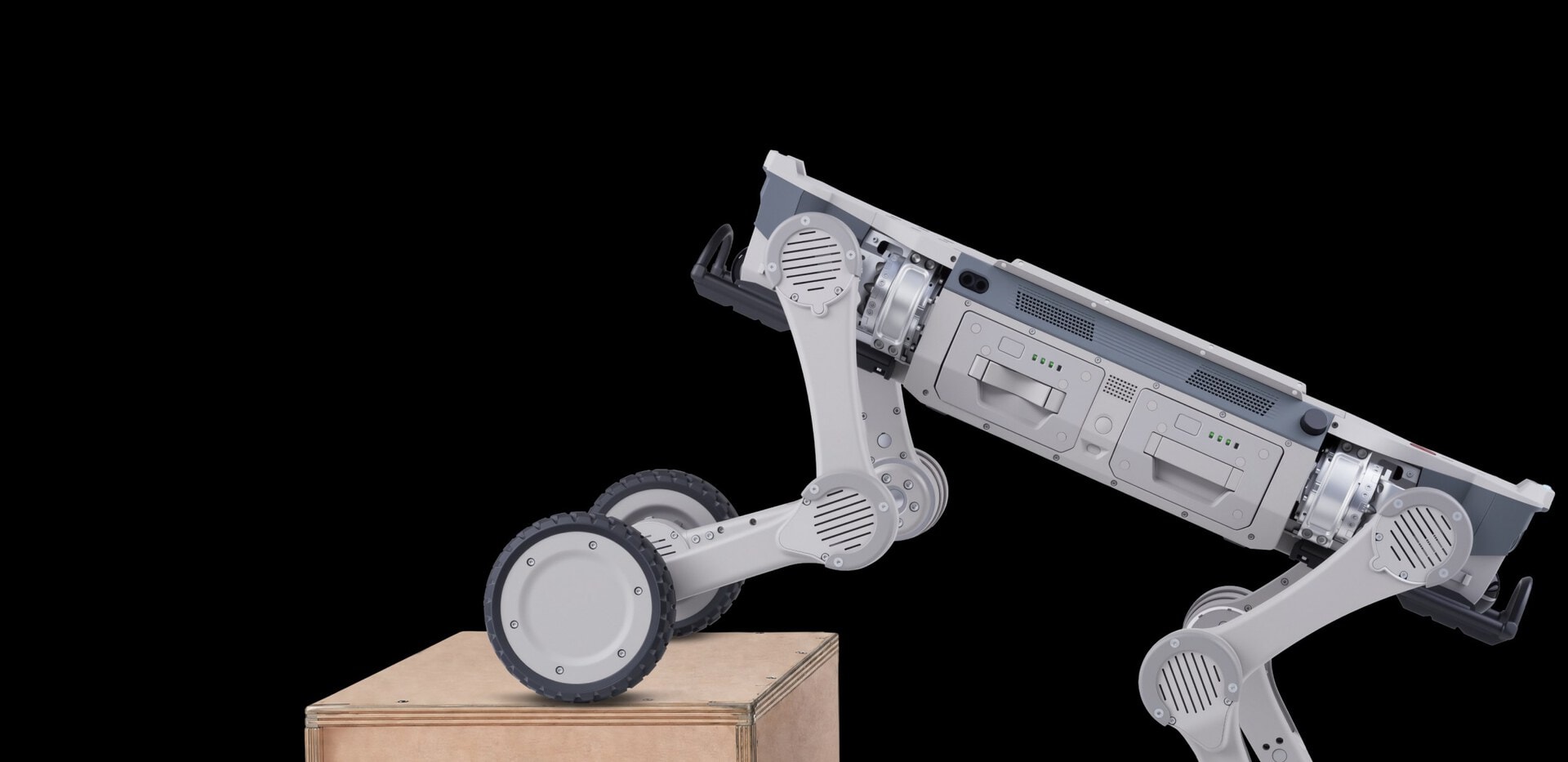

80 cm single-step obstacle clearance -
≥5 h runtime · ≥29 km range
Hot-swappable batteries -
IP67 industrial-grade protection
−20°C to +55°C -
3D mapping and omnidirectional avoidance
Path planning and dynamic re-planning
Ready for civil, commercial and industrial scenarios
-

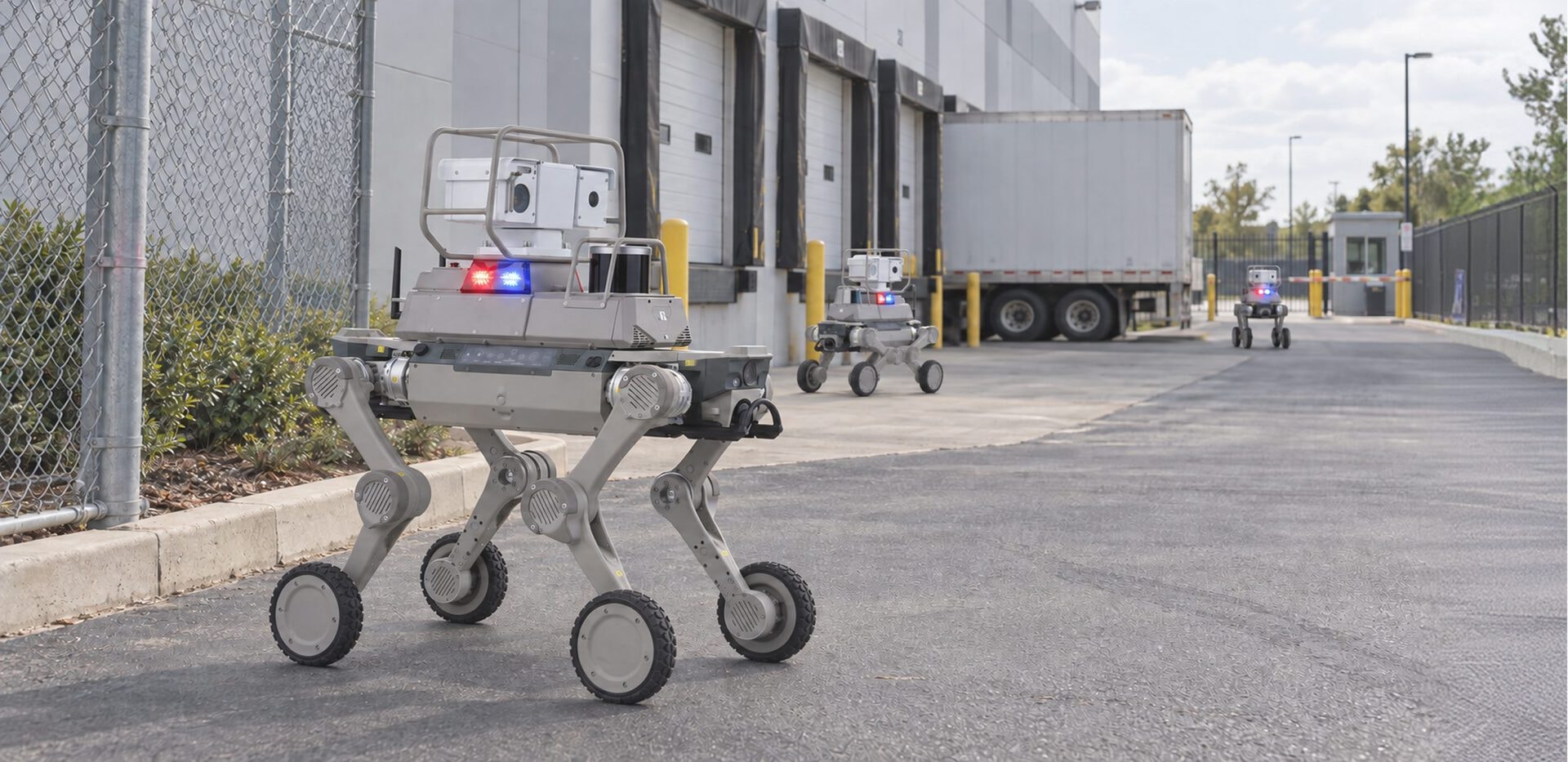

Security and patrol.
A smart security node that moves. -

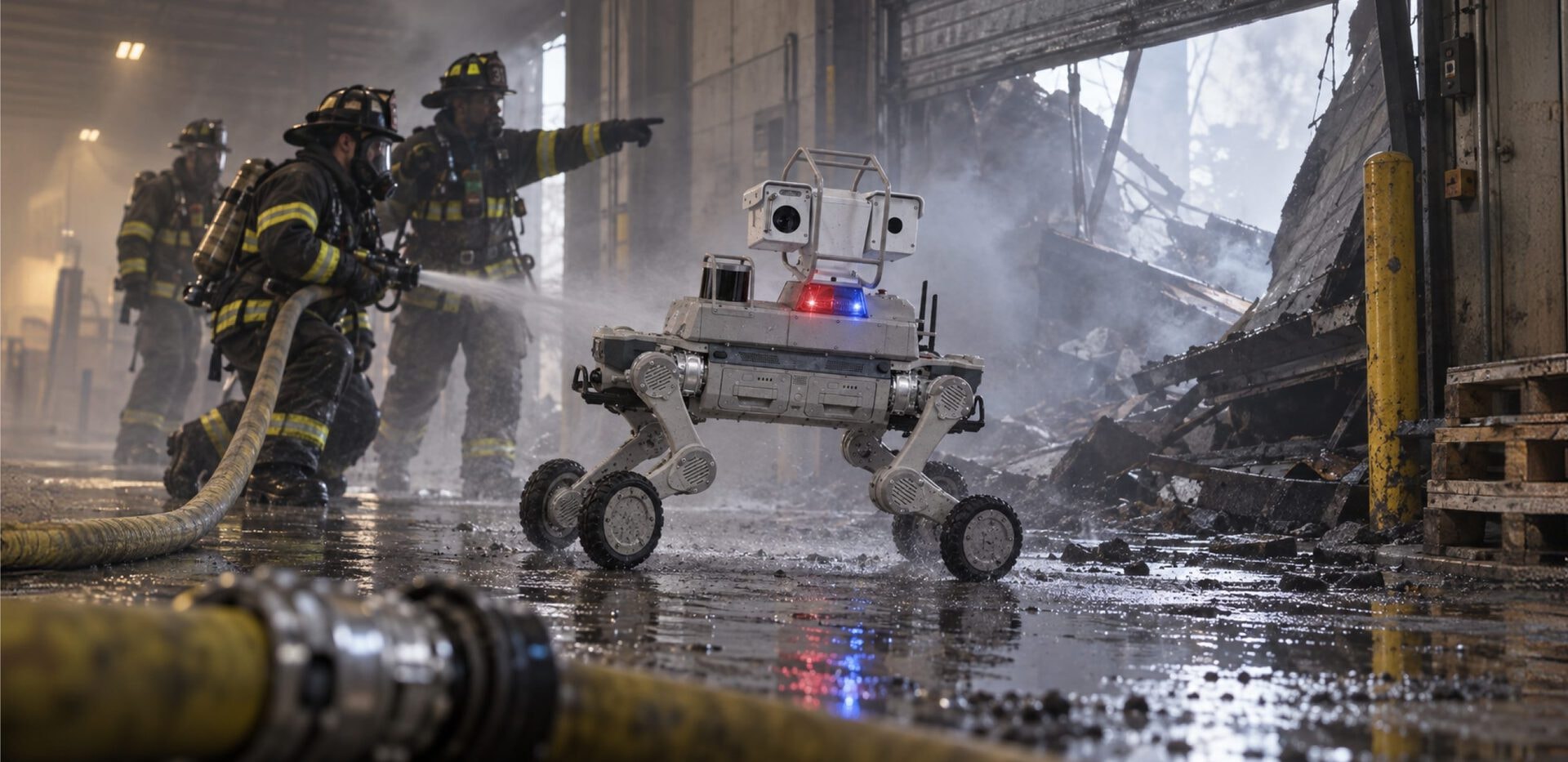

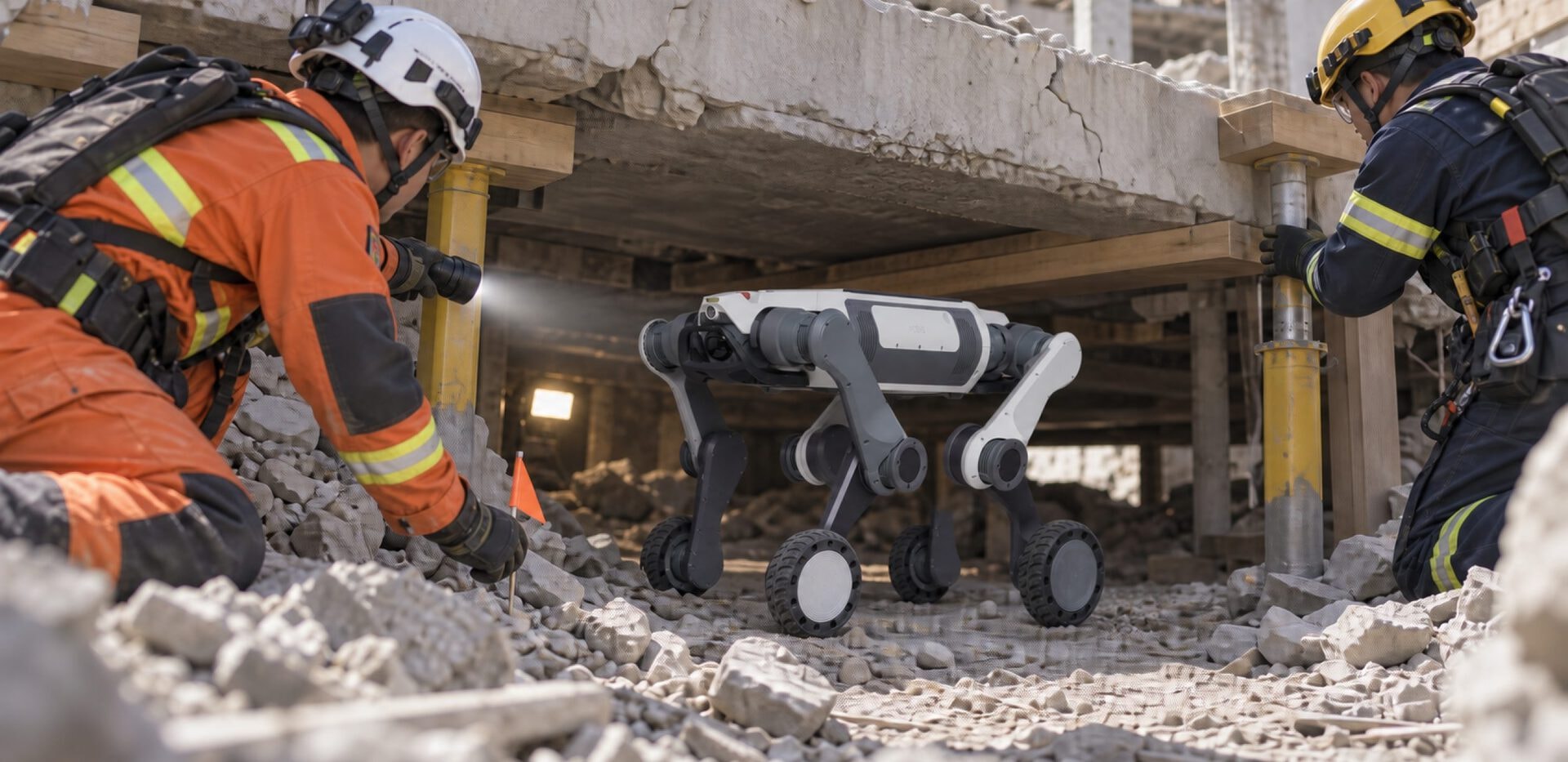

Firefighting and rescue.
It goes in first, so people don’t have to. -
Industrial and commercial inspection.
Suited to power, water, chemical and many other applications. -

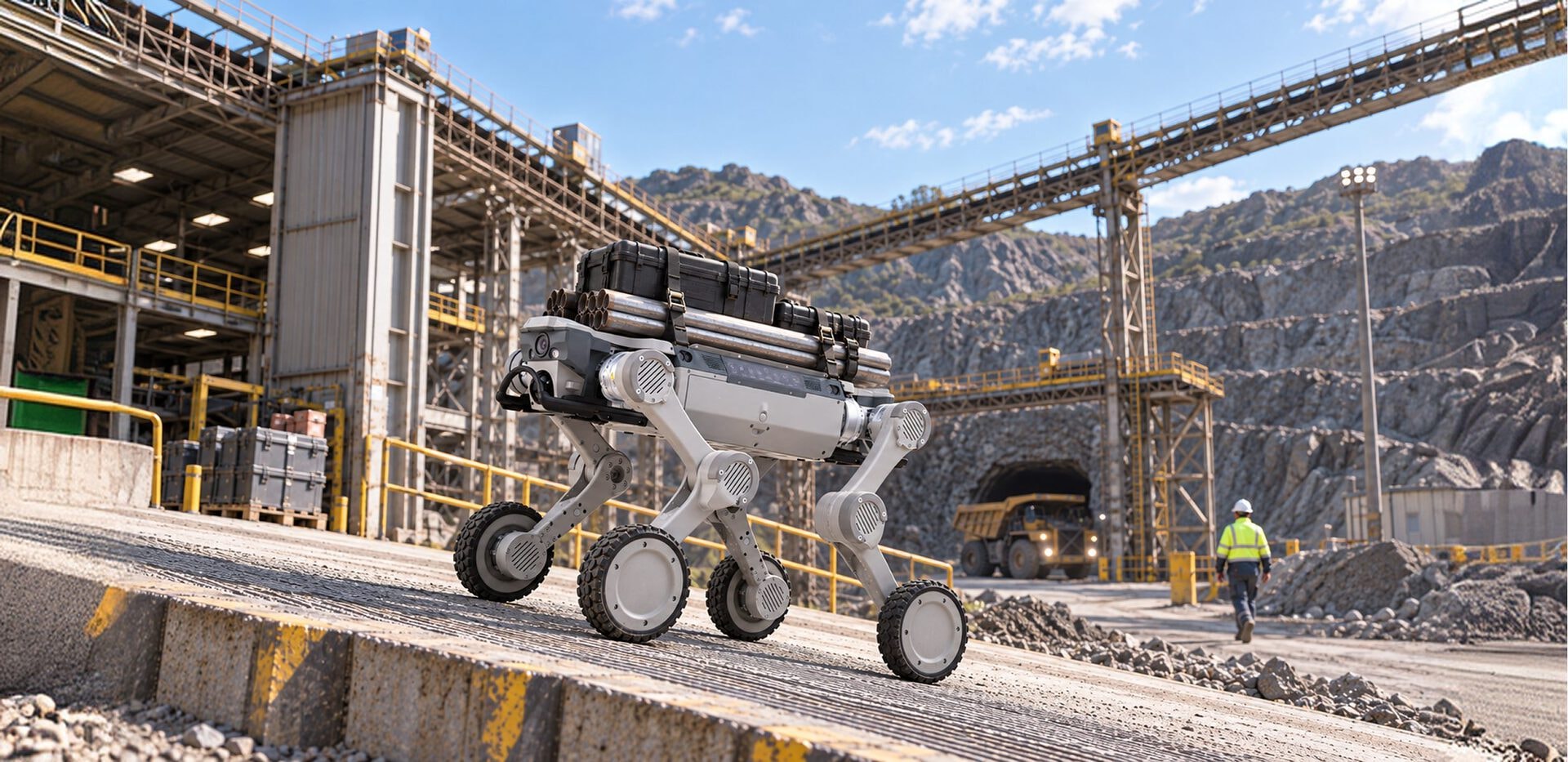

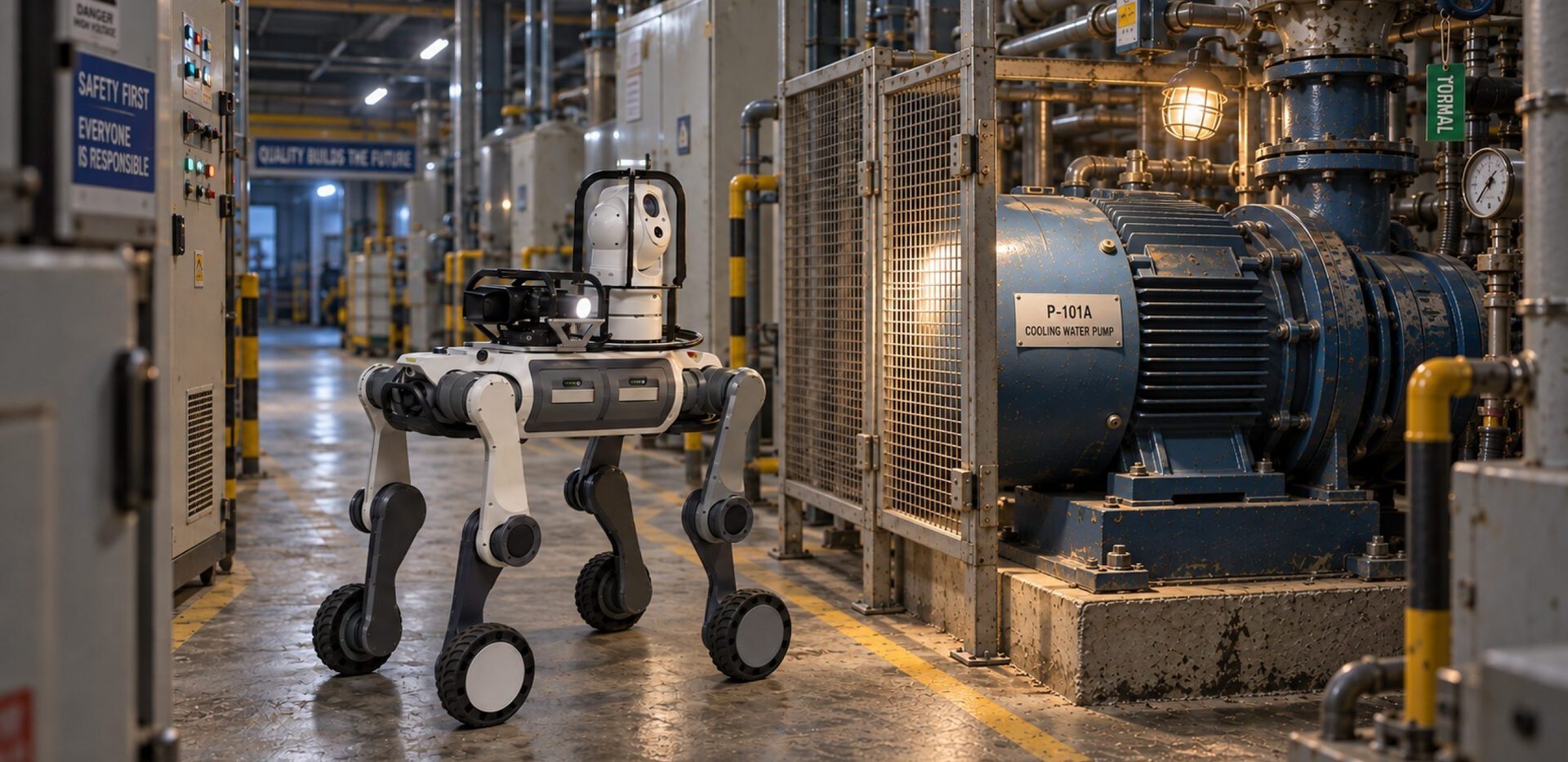

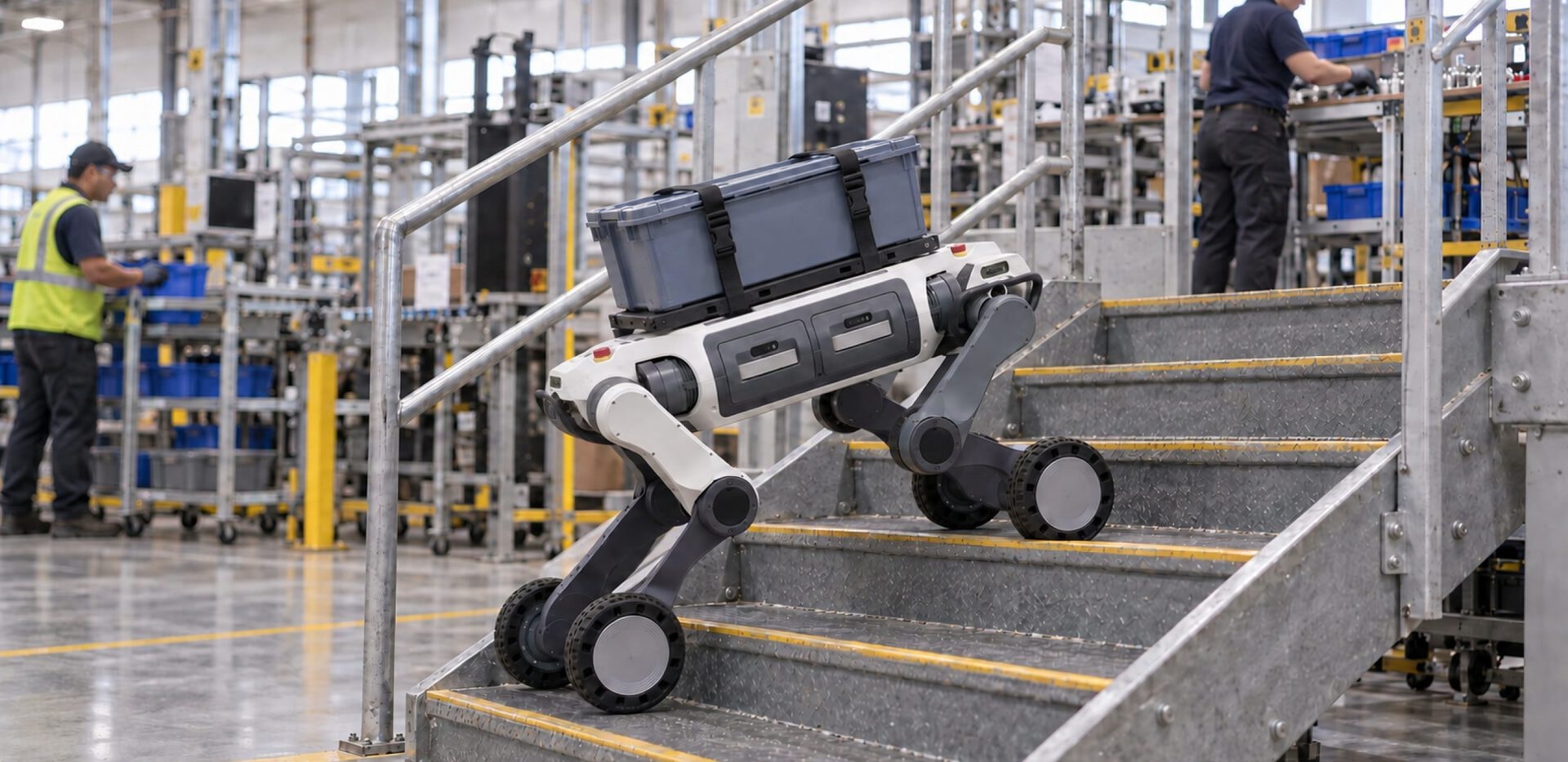

Industrial transport and logistics.
Complex terrain, handled with ease.

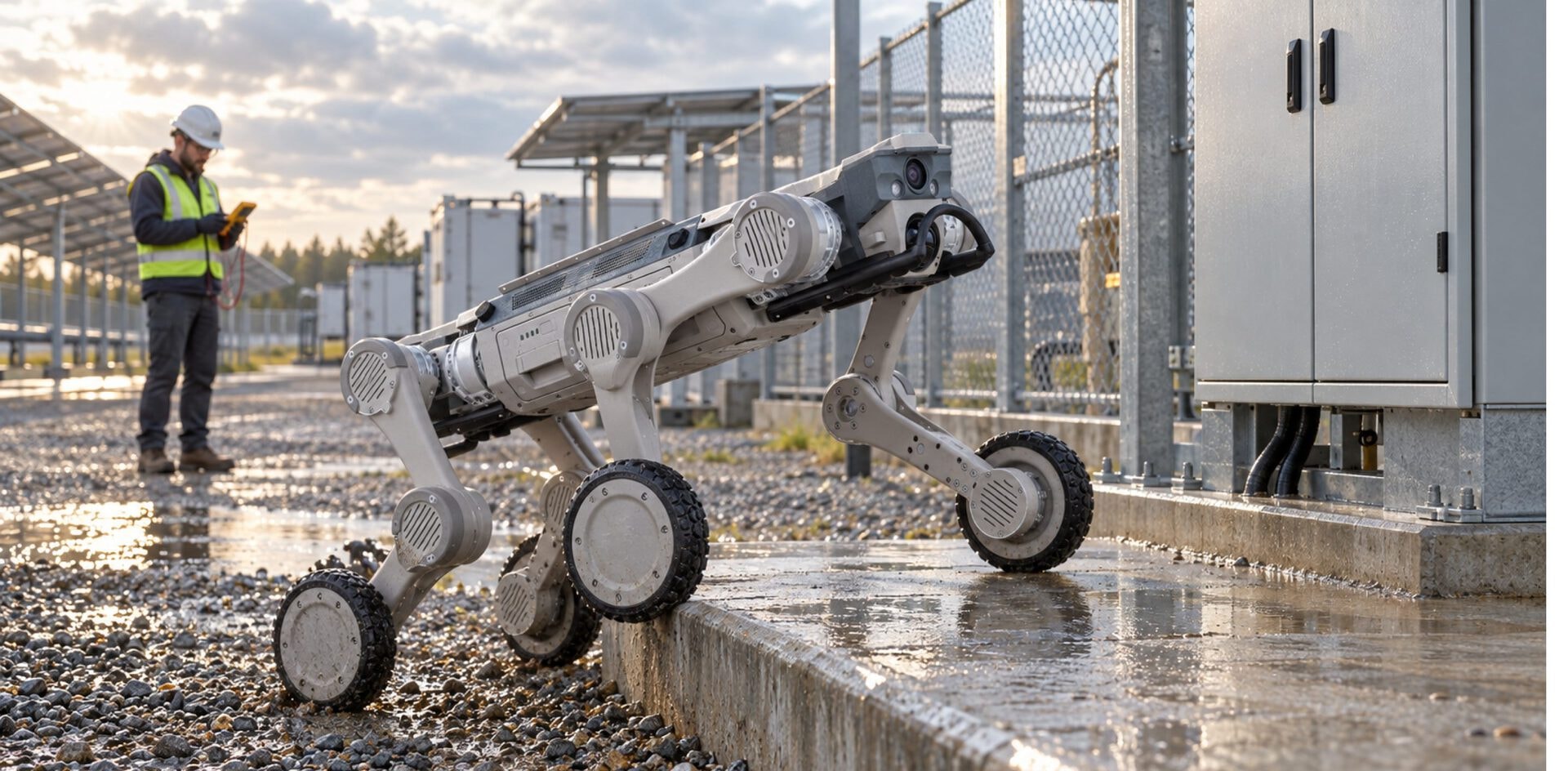

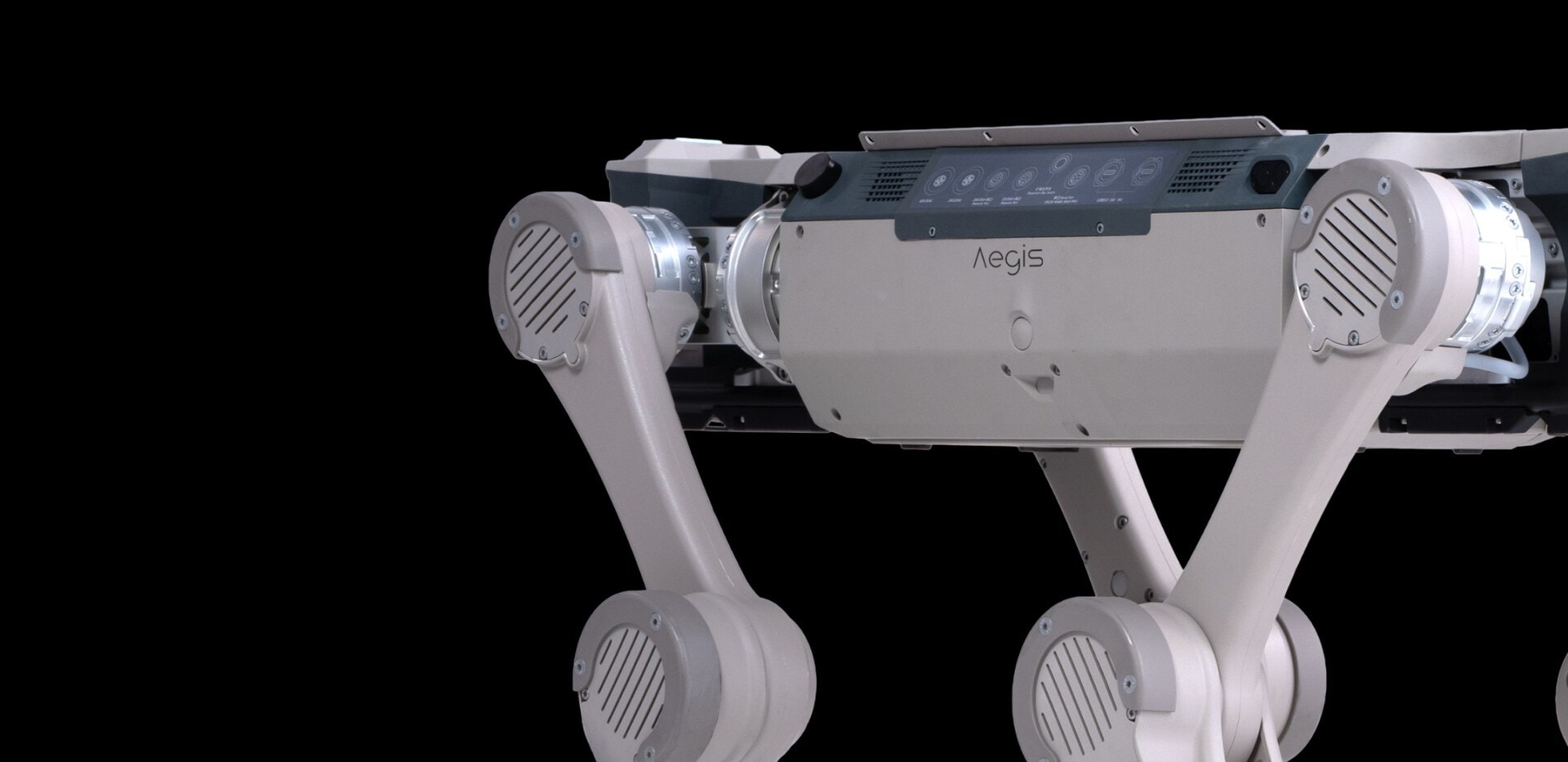

Wheel-legged architecture
High-speed mobility.
Exceptional traversability.
The speed of a wheeled robot and the terrain adaptability of a quadruped, combined in a single platform. Fast and quiet on flat ground, and just as capable on stairs, ditches and broken surfaces.

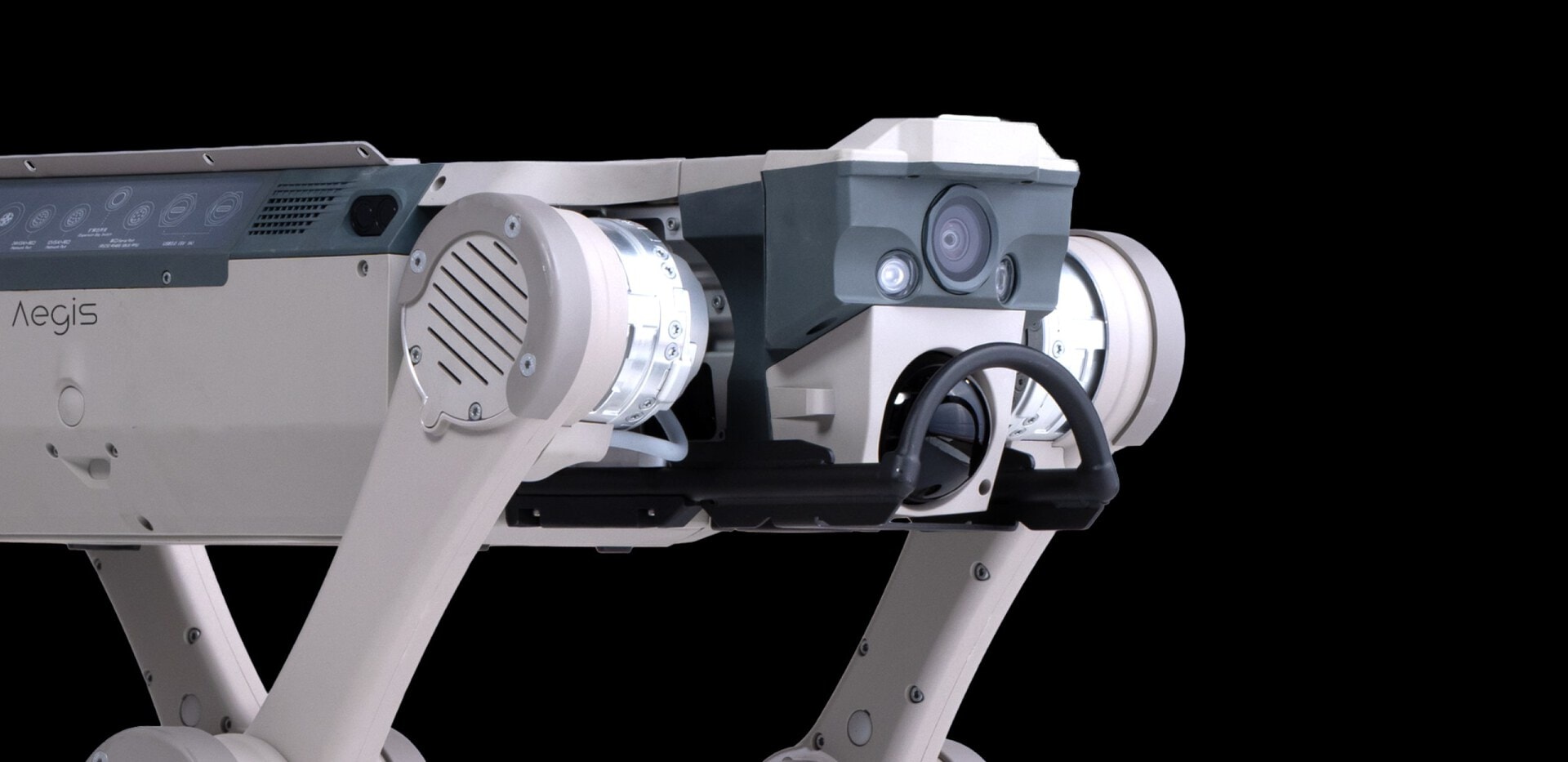

Full-field perception
It sees everything.
No blind spots.
Dual 96-line 3D LiDAR (approx. 860,000 points/sec) and dual wide-angle cameras build a full 360° point cloud view — detecting obstacles and occluded targets earlier in rubble, tunnels, mountains and plant sites, then planning a safe route through them.
Payload and expansion
One platform.
Carries the entire mission.
Gigabit Ethernet, 72 V power, RF video transmission and a range of communication and control interfaces leave room to integrate robotic arms, gimbals, gas sensors and industry-specific payloads. Choose the payload and solution that fits the mission.

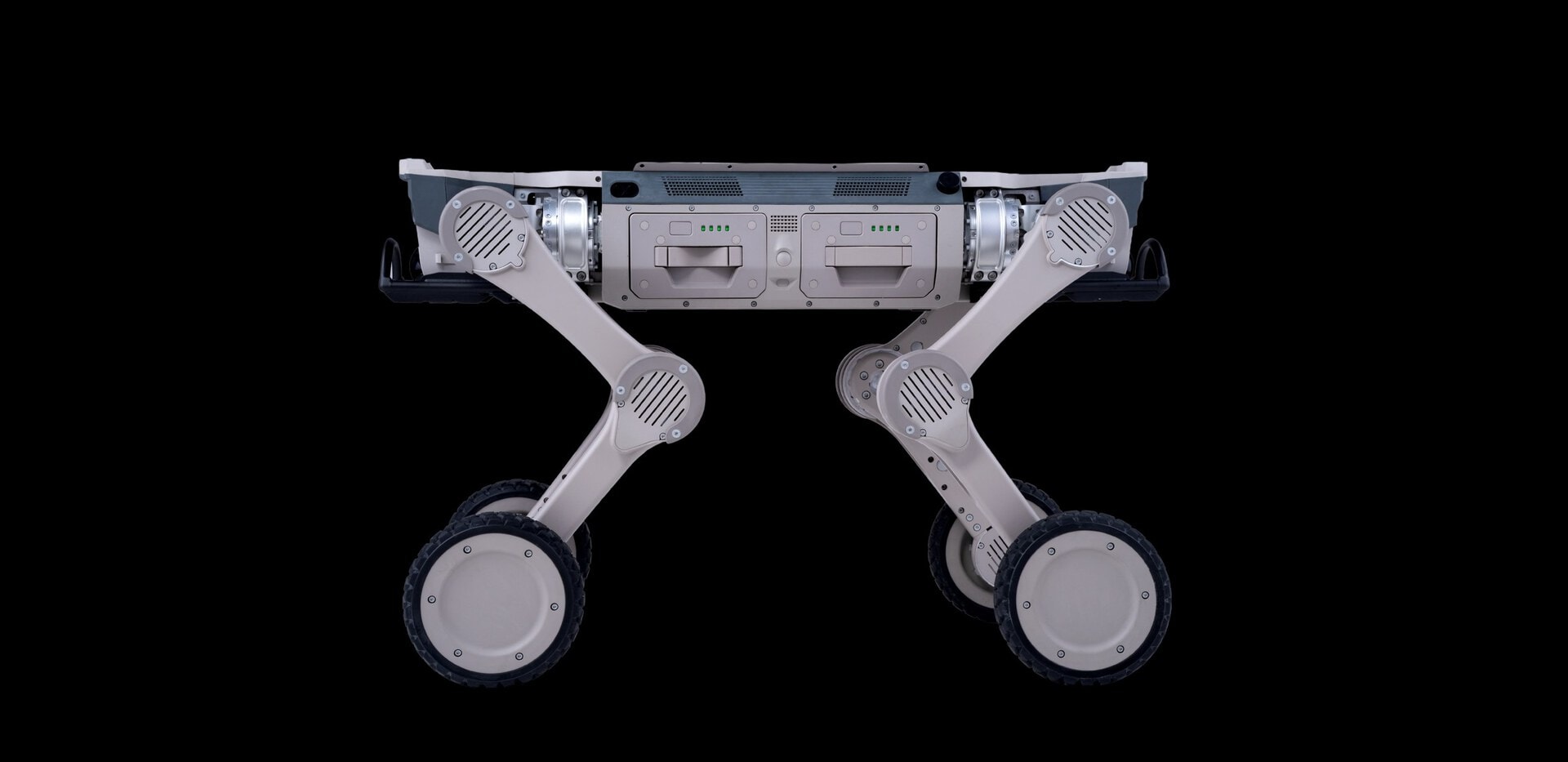

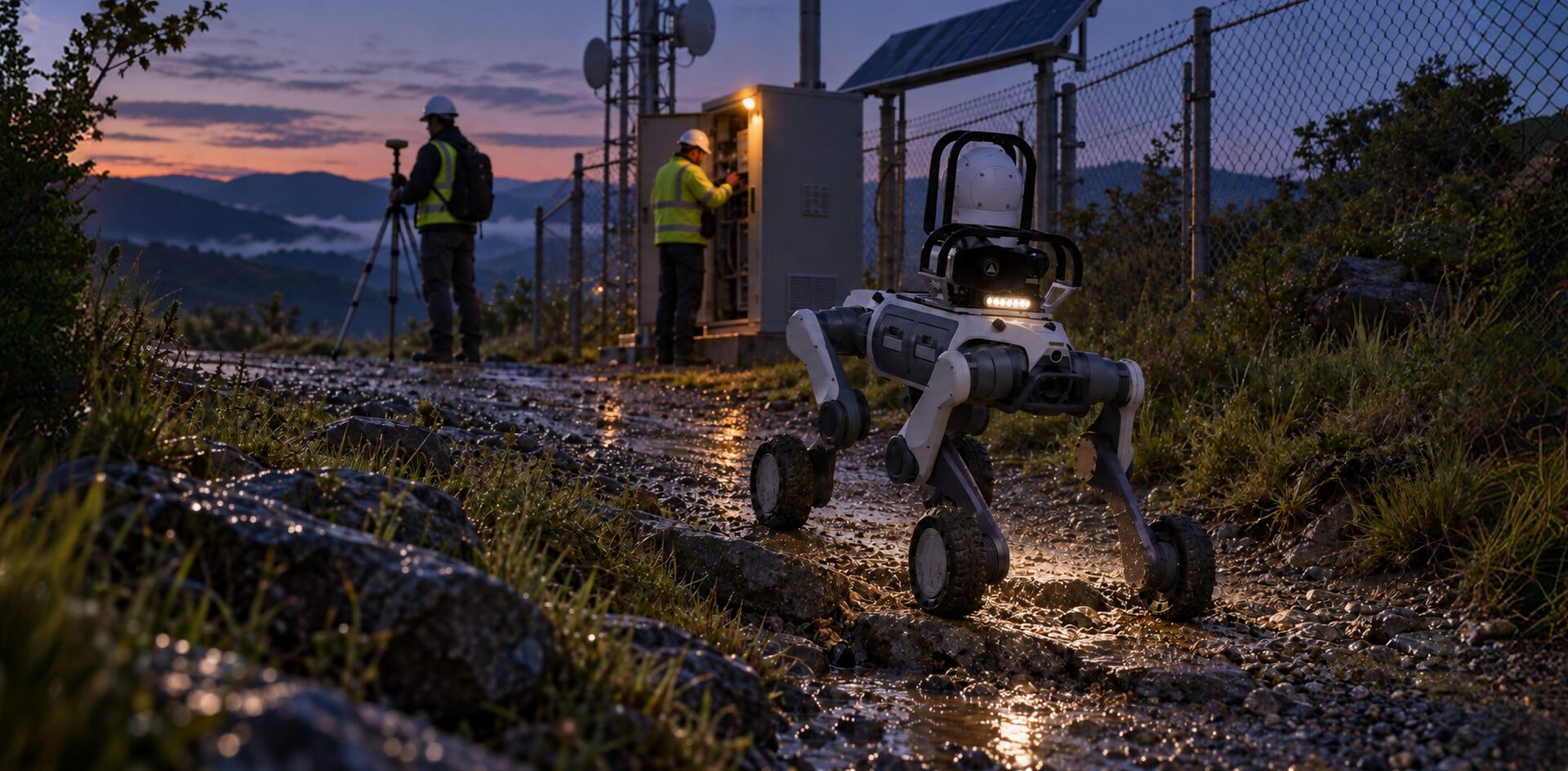

Endurance and recharging
One deployment.
The entire route.
Up to ≥5 hours of runtime and ≥29 km of range — enough for large campuses, long pipeline runs and extended missions in the field. Dual batteries hot-swap without powering down, and autonomous charging makes true 24/7 uninterrupted operation possible.

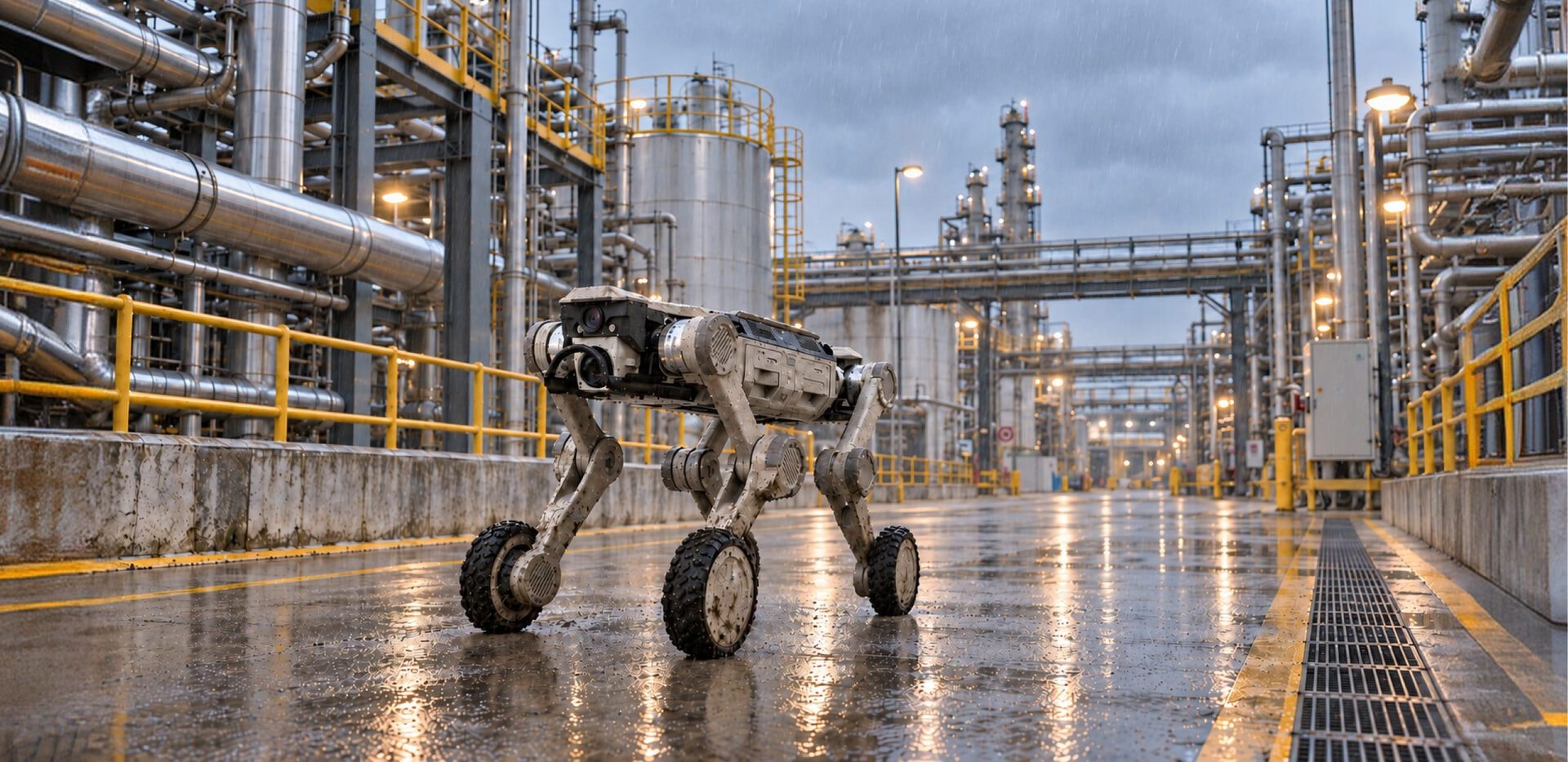

Industrial-grade protection
Rain, snow, wind, dust.
None of it stops work.
Up to IP67 protection across the range against rain, dust and humidity, with a −20°C to +55°C operating temperature range. It keeps working through rain, airborne dust, heat and cold — so there is less waiting on downtime.

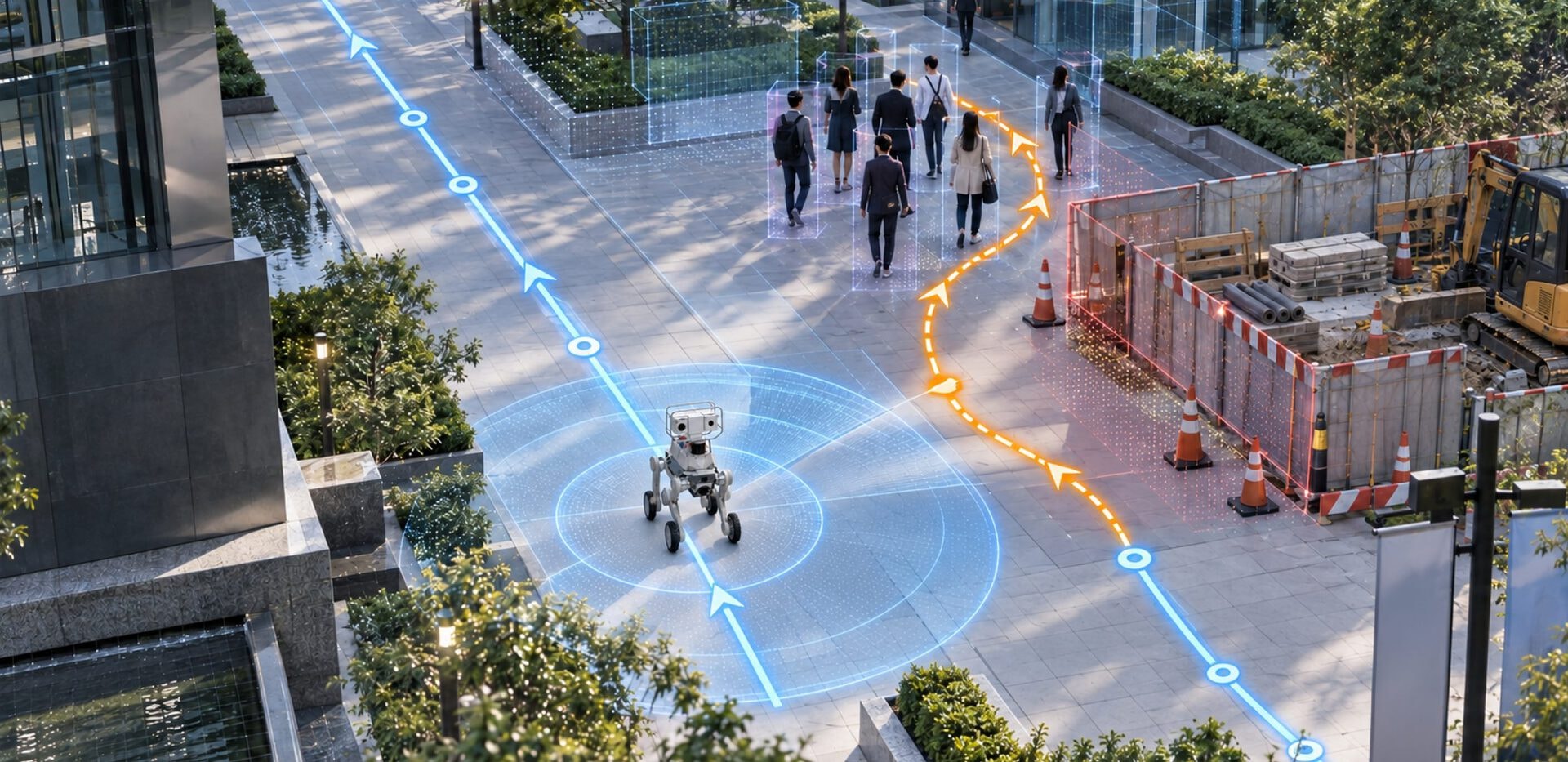

Autonomous navigation and avoidance
It recognises on its own.
It plans intelligently.
360° mapping, omnidirectional obstacle avoidance, path planning and dynamic re-planning, with motion strategies that switch according to gradient, obstacles and surface conditions — taking the wheel-legged advantage beyond mechanics into a closed loop of perception, decision and motion control. Set a destination and it travels there by itself, re-routing around obstacles that appear along the way.
FF industry ecosystem solutions
From a single robot
to a complete solution.
Inspection tasks, alarm linkage, data upload, mission logging and fleet management — extending the robot itself into an operable, fully traceable industry solution.
The same price.
Nearly twice the performance.
A new performance benchmark among mid-size industrial robot dogs in its US price class. It reaches the stairs, ramps and unstructured areas that conventional wheeled equipment cannot. Combined with remote takeover, fleet scheduling and a mission management platform, it keeps people out of hazardous areas while significantly extending inspection coverage, response efficiency and operational continuity.

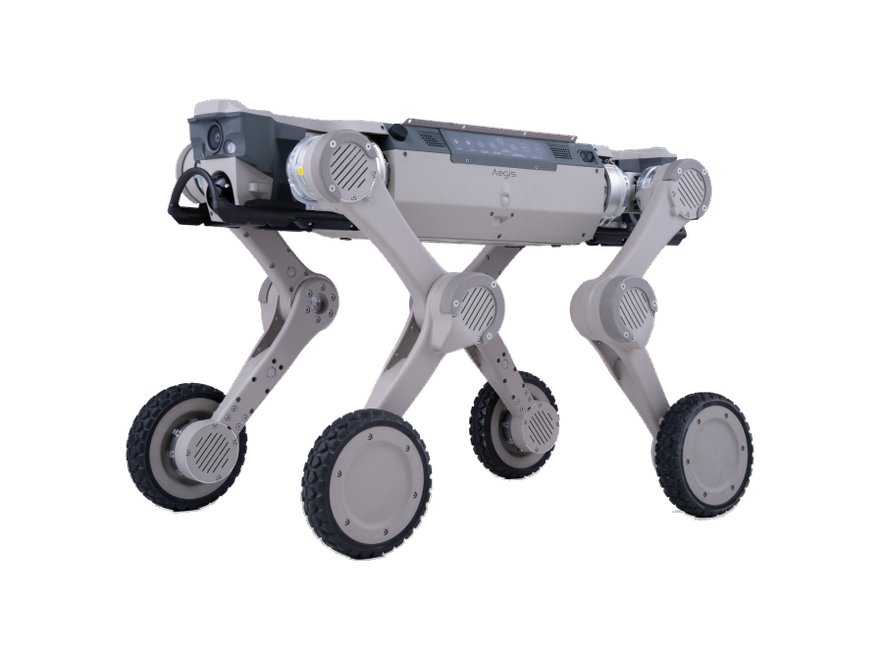

Aegis Mega A
From $74,990
8 m/s
Top speed
Recommended safe operation: 2 m/s
25 kg
Rated payload
Max load 50 kg
80 cm
Single-step obstacle clearance
45° gradient · 25 cm continuous stairs
5 hours
1,010 Wh dual batteries
Hot-swappable without powering down
IP67
−20 to 55 °C
Starts up across the full range
2 × LiDAR
Plus dual wide-angle cameras
RTK precision positioning standard
Standard
Autonomous navigation
360° mapping · omnidirectional avoidance
41 kg
930 × 480 × 585 mm
16-DOF wheel-legged
SDK · OTA
Developer SDK
Over-the-air firmware updates

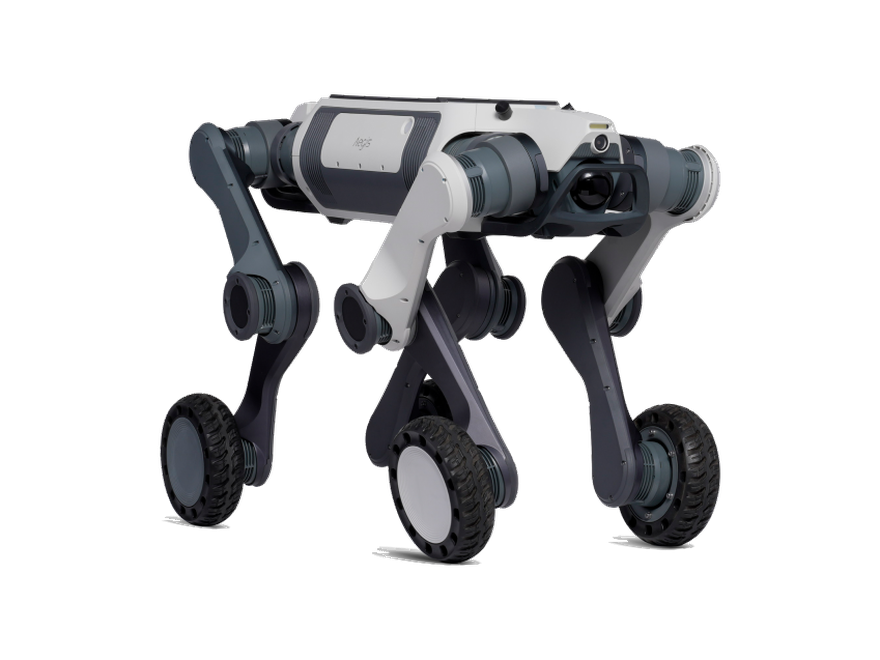

Aegis Mega D
From $74,990
5 m/s
Top speed
Recommended safe operation: 2 m/s
15 kg
Rated payload
Compact body
80 cm
Single-step obstacle clearance
45° gradient · 25 cm continuous stairs
3 hours
648 Wh dual batteries
Hot-swappable without powering down
IP66
−20 to 55 °C
Starts up across the full range
2 × LiDAR
Plus dual wide-angle cameras
RTK precision positioning standard
Standard
Autonomous navigation
360° mapping · omnidirectional avoidance
35 kg
820 × 430 × 570 mm
16-DOF wheel-legged
SDK · OTA
Developer SDK
Over-the-air firmware updates

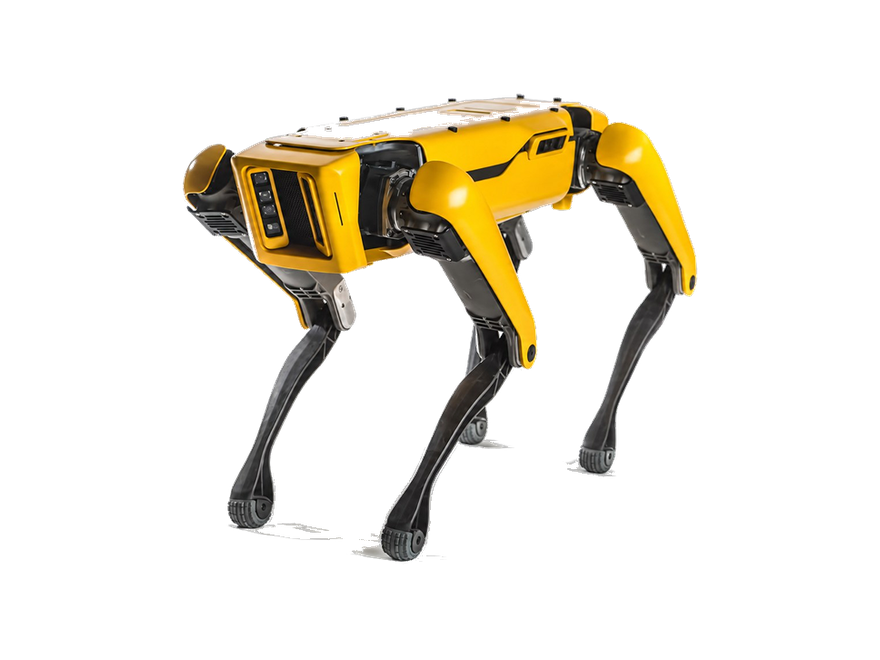

Other mid-size quadruped robot
From $75,000
1.6 m/s
Top speed
Legged locomotion only
14 kg
Rated payload
30 cm
Single-step obstacle clearance
30° gradient
1.5 hours
564 Wh single battery
No hot-swap
IP54
−20 to 55 °C
Will not start below 0 °C
Not available
LiDAR and RTK
Neither offered
Optional
Autonomous navigation
Sold separately
33 kg
1,100 × 500 × 610 mm
12-DOF legged only
SDK · OTA
Developer SDK
Over-the-air firmware updates
